MAVLINK Custom message 구성 및 전송

1. mavlink 통신 예제 다운로드

https://github.com/yongeePark/c_uart_interface_example.git

GitHub - yongeePark/c_uart_interface_example: Simple MAVLink to UART interface example for *nix systems

https://github.com/yongeePark/c_uart_interface_example.git

2. Custom Message 제작



아래와 같이 원하는 정보 포함하는 xml 파일 작성

본 예제에서는 20개의 x,y,z point 보낸다고 가정



message id는 구간이 있으며 기존 메세지랑 겹칠 경우 통신이 안 되는 것으로 추정됨

만약 전송이 안될경우 id를 바꿔가며 통신 시도해야 함

<?xml version='1.0'?>
    <mavlink>
        <include>common.xml</include>
        <version>3</version>
        <enums></enums>
        <messages>
            <message id="205" name="POINTCLOUD">
            <description>Custom Point Cloud Message</description>
            <field type="uint32_t" name="number" units="ms" display="default">Timestamp in milliseconds</field>
            <field type="float" name="x01" units="m" display="default">position</field>
            <field type="float" name="y01" units="m" display="default">position</field>
            <field type="float" name="z01" units="m" display="default">position</field>
            <field type="float" name="x02" units="m" display="default">position</field>
            <field type="float" name="y02" units="m" display="default">position</field>
            <field type="float" name="z02" units="m" display="default">position</field>
            <field type="float" name="x03" units="m" display="default">position</field>
            <field type="float" name="y03" units="m" display="default">position</field>
            <field type="float" name="z03" units="m" display="default">position</field>
            <field type="float" name="x04" units="m" display="default">position</field>
            <field type="float" name="y04" units="m" display="default">position</field>
            <field type="float" name="z04" units="m" display="default">position</field>
            <field type="float" name="x05" units="m" display="default">position</field>
            <field type="float" name="y05" units="m" display="default">position</field>
            <field type="float" name="z05" units="m" display="default">position</field>
            <field type="float" name="x06" units="m" display="default">position</field>
            <field type="float" name="y06" units="m" display="default">position</field>
            <field type="float" name="z06" units="m" display="default">position</field>
            <field type="float" name="x07" units="m" display="default">position</field>
            <field type="float" name="y07" units="m" display="default">position</field>
            <field type="float" name="z07" units="m" display="default">position</field>
            <field type="float" name="x08" units="m" display="default">position</field>
            <field type="float" name="y08" units="m" display="default">position</field>
            <field type="float" name="z08" units="m" display="default">position</field>
            <field type="float" name="x09" units="m" display="default">position</field>
            <field type="float" name="y09" units="m" display="default">position</field>
            <field type="float" name="z09" units="m" display="default">position</field>
            <field type="float" name="x10" units="m" display="default">position</field>
            <field type="float" name="y10" units="m" display="default">position</field>
            <field type="float" name="z10" units="m" display="default">position</field>
            <field type="float" name="x11" units="m" display="default">position</field>
            <field type="float" name="y11" units="m" display="default">position</field>
            <field type="float" name="z11" units="m" display="default">position</field>
            <field type="float" name="x12" units="m" display="default">position</field>
            <field type="float" name="y12" units="m" display="default">position</field>
            <field type="float" name="z12" units="m" display="default">position</field>
            <field type="float" name="x13" units="m" display="default">position</field>
            <field type="float" name="y13" units="m" display="default">position</field>
            <field type="float" name="z13" units="m" display="default">position</field>
            <field type="float" name="x14" units="m" display="default">position</field>
            <field type="float" name="y14" units="m" display="default">position</field>
            <field type="float" name="z14" units="m" display="default">position</field>
            <field type="float" name="x15" units="m" display="default">position</field>
            <field type="float" name="y15" units="m" display="default">position</field>
            <field type="float" name="z15" units="m" display="default">position</field>
            <field type="float" name="x16" units="m" display="default">position</field>
            <field type="float" name="y16" units="m" display="default">position</field>
            <field type="float" name="z16" units="m" display="default">position</field>
            <field type="float" name="x17" units="m" display="default">position</field>
            <field type="float" name="y17" units="m" display="default">position</field>
            <field type="float" name="z17" units="m" display="default">position</field>
            <field type="float" name="x18" units="m" display="default">position</field>
            <field type="float" name="y18" units="m" display="default">position</field>
            <field type="float" name="z18" units="m" display="default">position</field>
            <field type="float" name="x19" units="m" display="default">position</field>
            <field type="float" name="y19" units="m" display="default">position</field>
            <field type="float" name="z19" units="m" display="default">position</field>
            <field type="float" name="x20" units="m" display="default">position</field>
            <field type="float" name="y20" units="m" display="default">position</field>
            <field type="float" name="z20" units="m" display="default">position</field>

            </message>
        </messages>
    </mavlink>



이후 아래 명령어를 입력하여 generator 실행

cd c_uart_interface_example/mavlink/include/mavlink/2.0
python3 mavgenerate.py

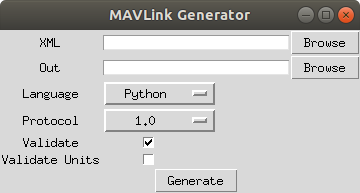

Mavlink Generator





XML : 작성한 custom message file

Out : 희망하는 디렉토리 지정. 예시에선 temp로 지정

Language : C

Protocol : 1.0



3. 통신 수행



두 대의 컴퓨터에 각각 Telemetery 연결



먼저 수신할 컴퓨터에서 아래 명령어 실행

./mavlink_receive

그다음 송신할 컴퓨터에서 아래 명령어 실행

./mavlink_send

통신 성공





만약 Telemetry 인식하지 못할 경우 포트 지정(깃허브 참고)



끝
